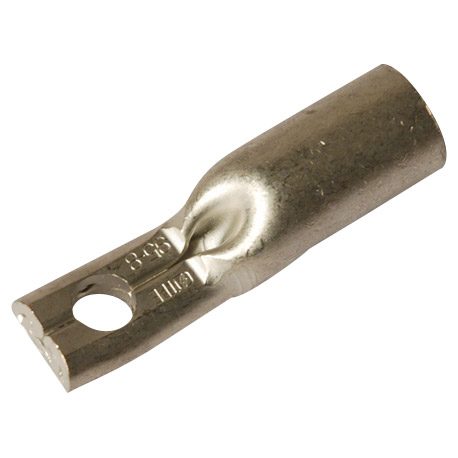

TPE70-6 TPE Copper Tube Terminal 2/0AWG 70mm² Tin-Plated Marine-Grade Copper Connector

Description

The ‌TPE70-6‌ marine-grade copper tube terminal features:

  • ‌Premium T2 electrolytic copper‌ (99.9% conductivity) with ‌tin plating‌ for corrosion resistance in harsh environments
  • ‌2/0AWG/70mm² capacity‌ for heavy-duty marine electrical systems
  • ‌Saltwater-certified‌ design ensuring durability in offshore applications
  • ‌Cold-forged construction‌ for vibration-resistant, low-resistance connections

‌Applications:‌ Ideal for shipbuilding, offshore platforms, and marine power distribution requiring waterproof, high-conductivity terminals.

Send email to us

Dimensions

φE(mm)6.4
ΦD(mm)14.7
Φd(mm)11.5
W(mm)15
B(mm)35
L(mm)55

General Specifications

MaterialPure Copper
Copper Content≥99.9%
SurfaceTin-Plated
Tongue AngleStraight
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
