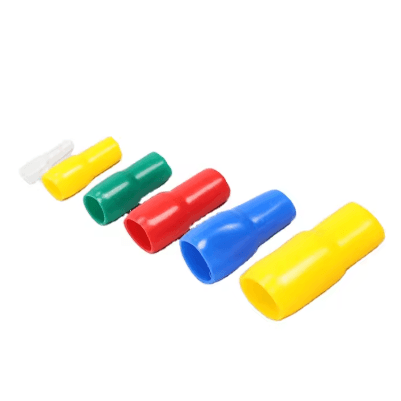

V-3.5 Vinyl Wire End Caps PVC 3.5mm² Insulator Soft Sleeve Custom color

V-3.5 PVC Wire End Cap | 3.5mm² Insulator | Soft Vinyl Sleeve | Custom Colors

Description

Feature: Soft vinyl construction with flexible ribs and custom color options
Advantage: Ensures tight fit on wire ends while resisting moisture and chemicals
Benefit: Prevents short circuits and reduces electrical hazards in panel applications

Data Overview

Size: 3.5mm²
Material: Soft PVC
Type: Wire End Cap
Customization: Color Options
Standards: RoHS compliant
Temperature: -30°C to 105°C

Application Scenarios
Control panel wiring, terminal block protection, electrical cabinet safety, and industrial equipment maintenance.

Send email to us

Dimensions

D1(mm)	5.7
D2(mm)	4.1
L1(mm)	9
L(mm)	18
T(mm)	0.8
Qpplicable Wires	3.5 mm²

Dimensions

Electrical Specifications
Rating – Maximum Voltage	35KV
Environmental Specifications
Operating Temperature	-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
Included	Lug
Packaging Quantity and UOM	1 pcs
Certifications
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system

Wire harness finished product

1 2 3 4 5 6

Cable Lugs Application

1 2 3 4
