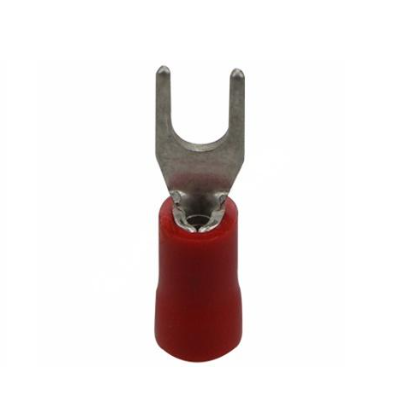

VF1.25-3YS Spade Insulated Terminal Y-Type RED PVC 22-16AWG

Description

The ‌VF1.25-3YS‌ spade terminals are crafted from ‌high-purity T2 electrolytic copper‌ (99.9% conductivity) with:

  • ‌22-16AWG (0.5-1.25mm²) capacity‌ for low-current applications
  • ‌Y-type design‌ for easy installation and removal
  • ‌Red PVC insulation‌ for enhanced safety and visibility
  • ‌Durable construction‌ for long-term performance

‌Applications:‌ Ideal for automotive wiring, control panels, and compact electrical assemblies requiring secure connections.

Send email to us

Dimensions

φE(mm)3.7
ΦD(mm)4
Φd(mm)1.7
W(mm)5.7
B(mm)10.4
L(mm)21.8
T(mm)0.8

General Specifications

MaterialPure Copper
Copper Content≥99.9%
ColorRed
Tongue AngleStraight
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
