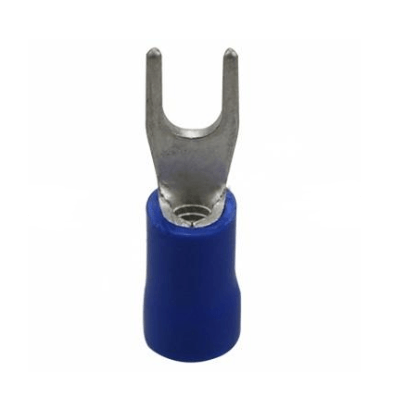

This Y-type insulated terminal features an electrolytic T2 copper core, ensuring maximum electrical conductivity and corrosion resistance. Designed for 16-14 AWG (1.5-2.5mm²) wire connections, it features a fork-shaped design with precision-engineered contact points for secure screw-terminal installations. The blue nylon insulation provides 600V dielectric strength, mechanical protection, and quick visual identification.

Technical Specifications:

• Conductor Material: T2 Copper (Electrolytic)

• Wire Range: 16-14 AWG (1.5-2.5mm²)

• Insulation: Nylon 6.6

• Color: Blue

• Voltage Rating: 600V

• Temperature Range: -40°C to 105°C

• Standards: UL, IEC, RoHS compliant

Application Scenarios:
Ideal for industrial control panels, automotive wiring harnesses, electrical equipment manufacturing, appliance connections, and maintenance applications where secure, insulated screw connections are required.
