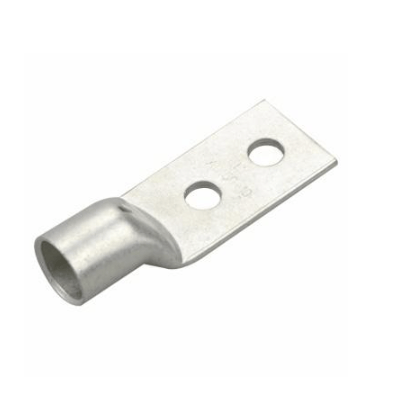

AD38-8 copper tube terminals AWG 2 standard barrel with inspection window

Description

The ‌AD38-8‌ tube terminals deliver ‌premium T2 electrolytic copper‌ (99.9% conductivity) with:

  • ‌AWG2 (33.6mm²) capacity‌ for robust current handling
  • ‌Standard barrel design‌ with ‌inspection window‌ for quick verification
  • ‌Corrosion-resistant finishes‌:
    • Standard bare copper
    • Optional tin plating (5-10μm thickness)
  • ‌Cold-forged construction‌ (UL486A/B compliant)
  • ‌-60°C to +200°C operational range‌

‌Applications:‌ Ideal for industrial equipment, power distribution, and heavy-duty electrical systems.

standards.

Send email to us

Dimensions

φE(mm)9.5
ΦD(mm)11.7
Φd(mm)9.5
W(mm)17.5
B(mm)12
L(mm)65.8
H(mm)25.4

General Specifications

Colourmetal
MaterialCopper
Tongue TypeStandard
Tongue AngleStraight
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
