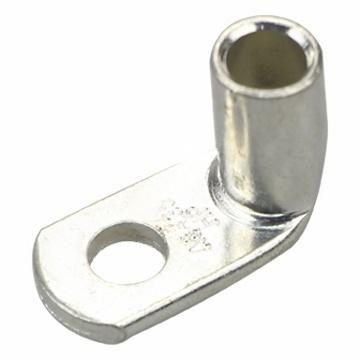

GPH90-6/5 90° Copper Tube Terminal 12-10AWG 4-6mm² Cold-Pressed lugs

Description

The ‌GPH90-6/5‌ right-angle copper tube terminal features:

  • ‌High-purity T2 electrolytic copper‌ (99.9% conductivity) for optimal performance
  • ‌12-10AWG (4-6mm²) capacity‌ for medium-current applications
  • ‌90° bend design‌ for space-saving installations in tight enclosures
  • ‌Cold-pressed construction‌ ensuring vibration-resistant, gas-tight connections

‌Applications:‌ Ideal for automotive wiring, control panels, and industrial equipment where compact wiring solutions are required.

Send email to us

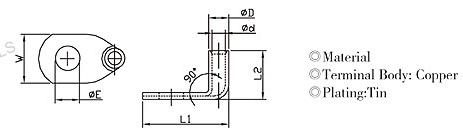

Dimensions

φE(mm)5.3
ΦD(mm)6.5
Φd(mm)3.5
W(mm)10
L1(mm)14
L2(mm)22.5

General Specifications

MaterialPure Copper
Copper Content≥99.9%
Tongue Angle90°
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
